Description
Kinmore
The delivery cycle is 15 days
| Warranty | 3months-1year | Place of Origin | Guangdong, China |
| Brand Name | Kinmore | Model Number | RS-555SH-2763R |
| Use | Car, Electric Bicycle, FAN, Home Appliance, SMART HOME, Cordless power tool,RC model,EPB,ETC,Air pump | Type | Micro Motor |
| Torque | 283.74 g.cm | Construction | Permanent Magnet |
| Commutation | Brush | Protect Feature | None |
| Speed(RPM) | 9100±10% rpm no load | Continuous Current(A) | 0.19A |
| Efficiency | IE 1 | Frame | 37.9*57mm |
| Rated voltage | DC 24V | Rated Power | 23.39W |
| Motor Mounting Type | Panel Mount | Speed Rpm | 9100±10% rpm no load |

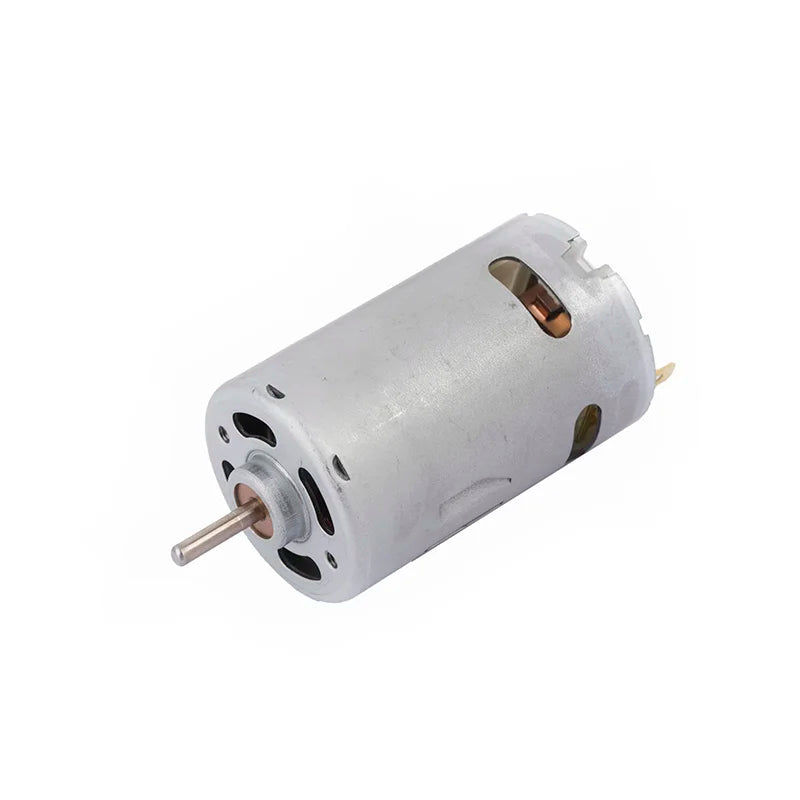

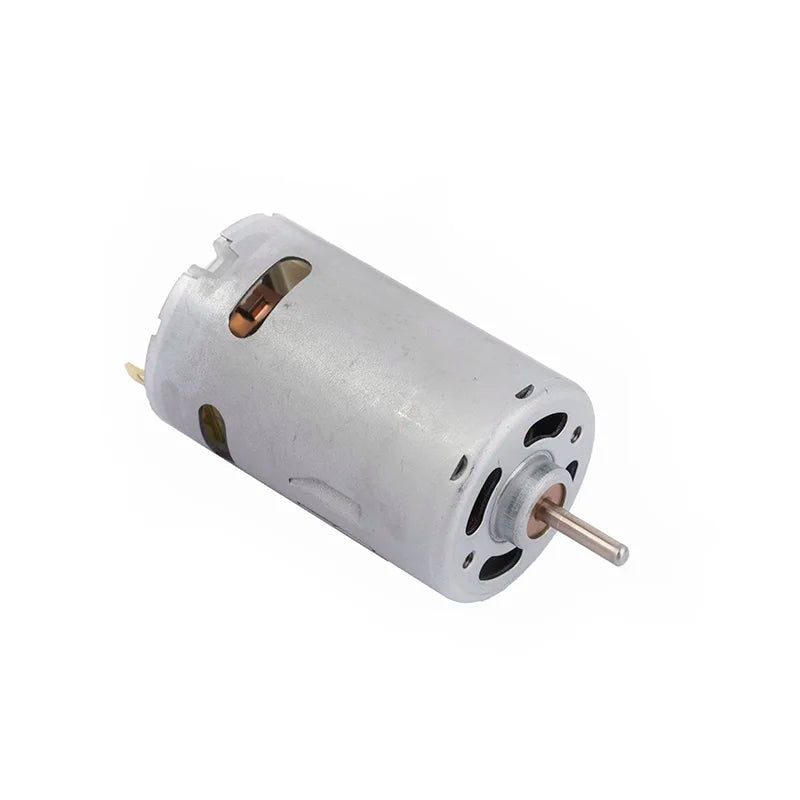

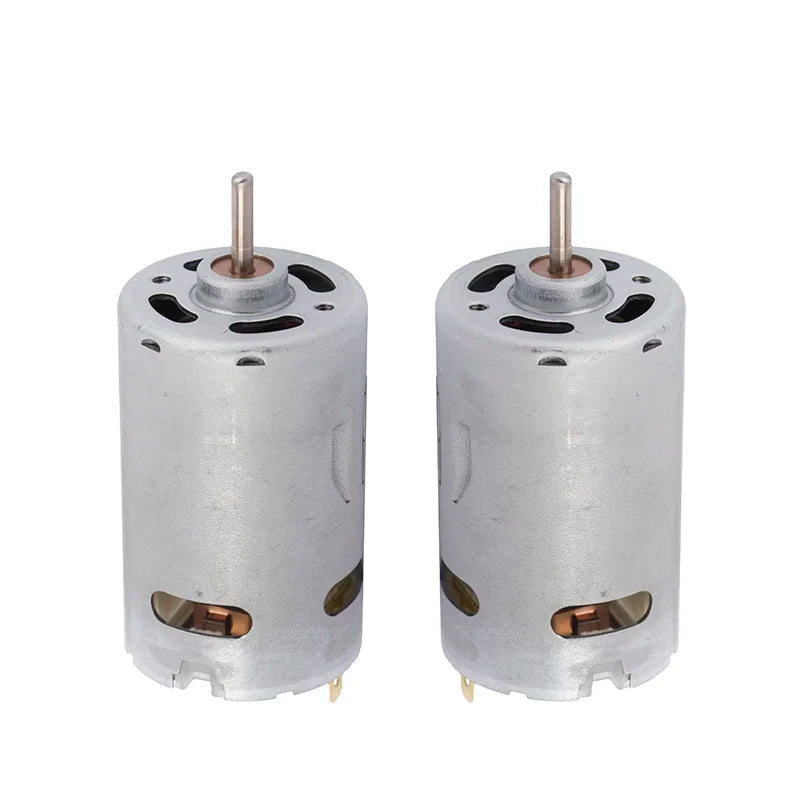

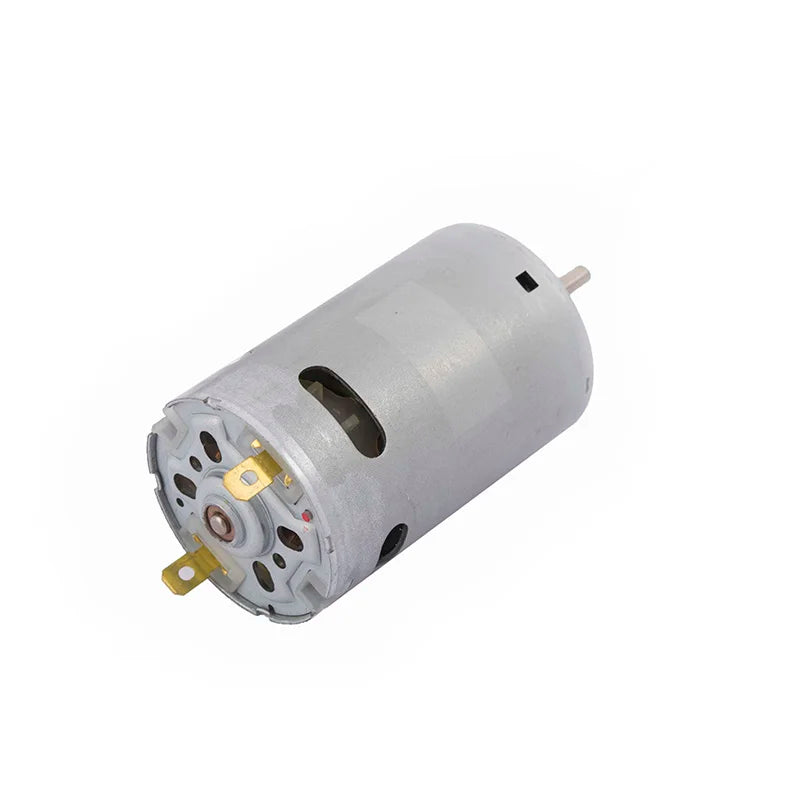

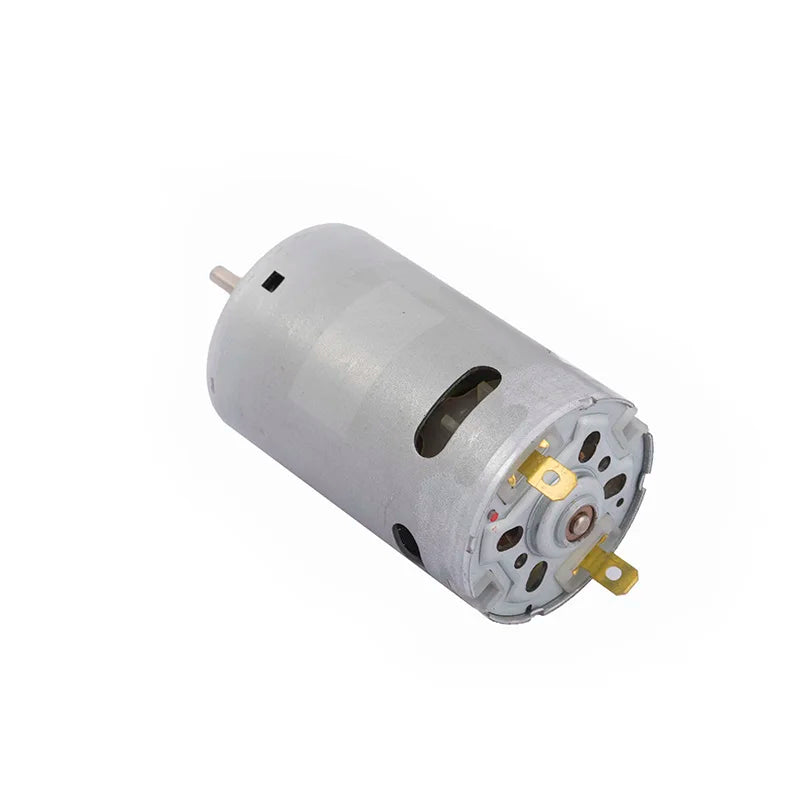

| Motor type | 24v dc motor rs 555 | Motor shape | Round |
| Brush type | Carbon Brush | Operating range | 12V~28V |
| Operating temperature | -10℃~60℃ | Weight | 210g |
| Environmental humidity | 40%~85%RH | Stall current | 8.80A |
| Rotation | CCW or CW,reversible | Certification | IATF16949:2016 |
