Description
roundss
The delivery cycle is 14 days
| Series | RCC | Mounting Type | flange mounting |

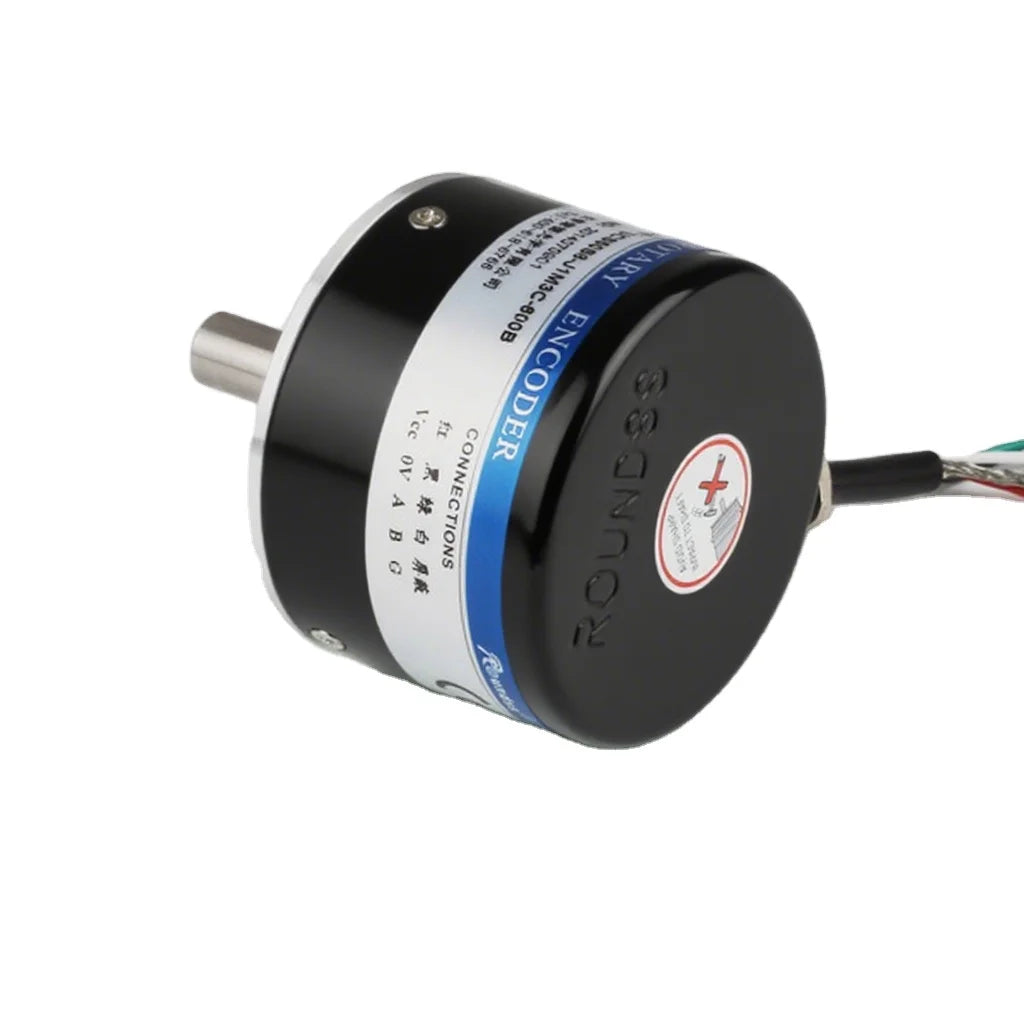

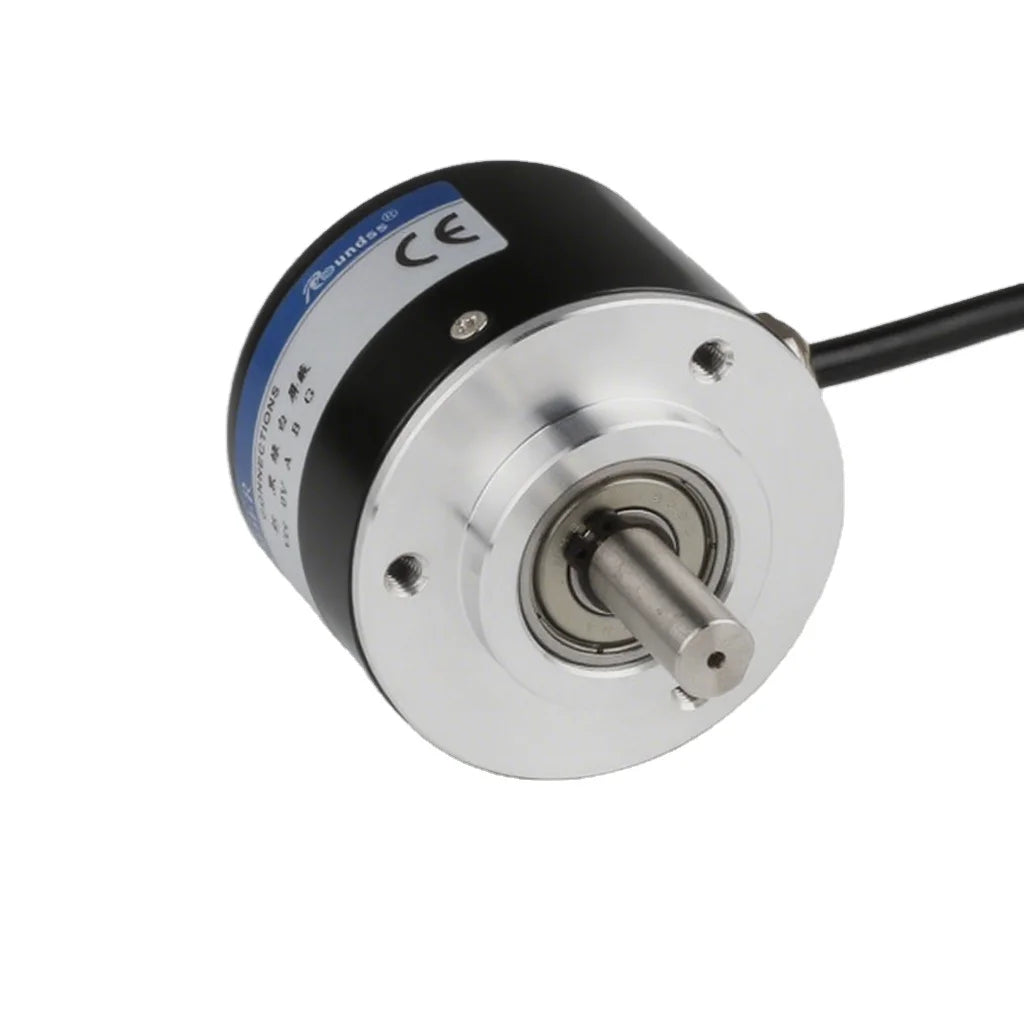

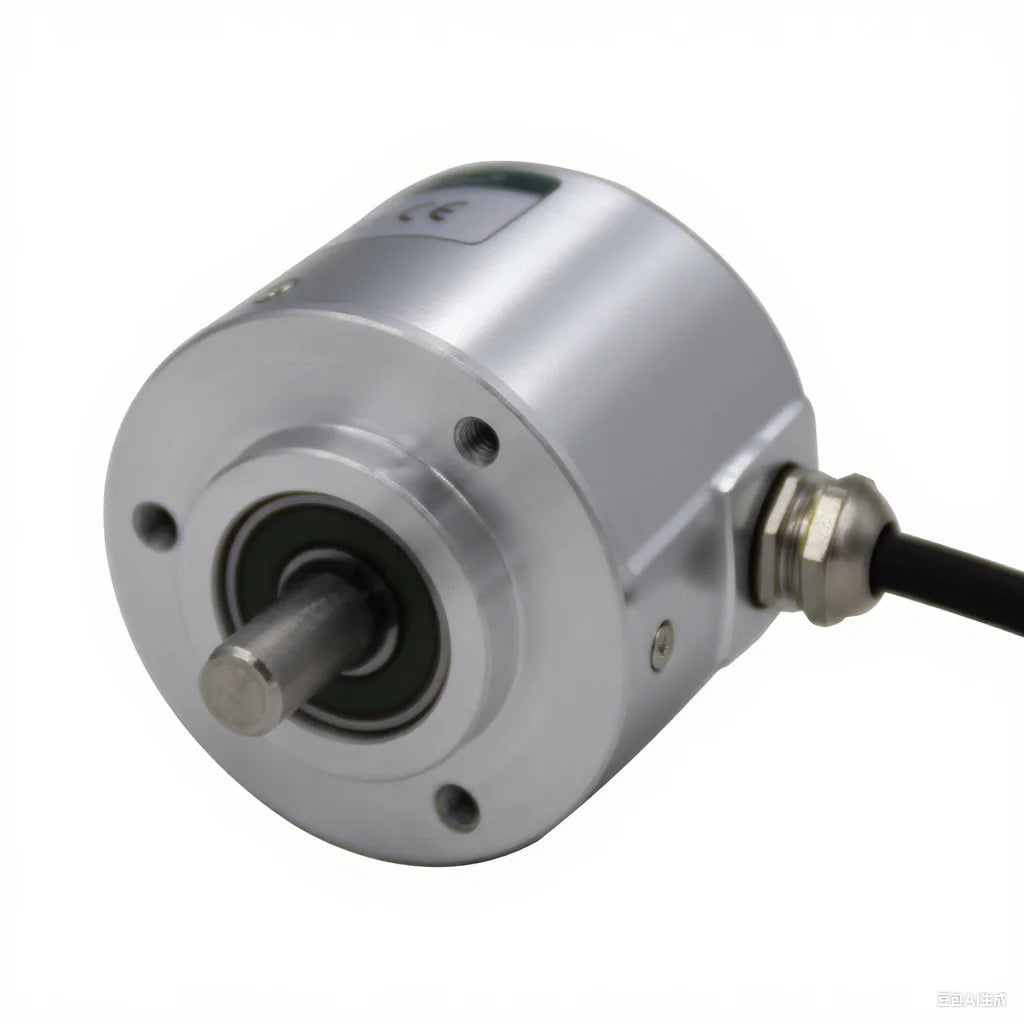

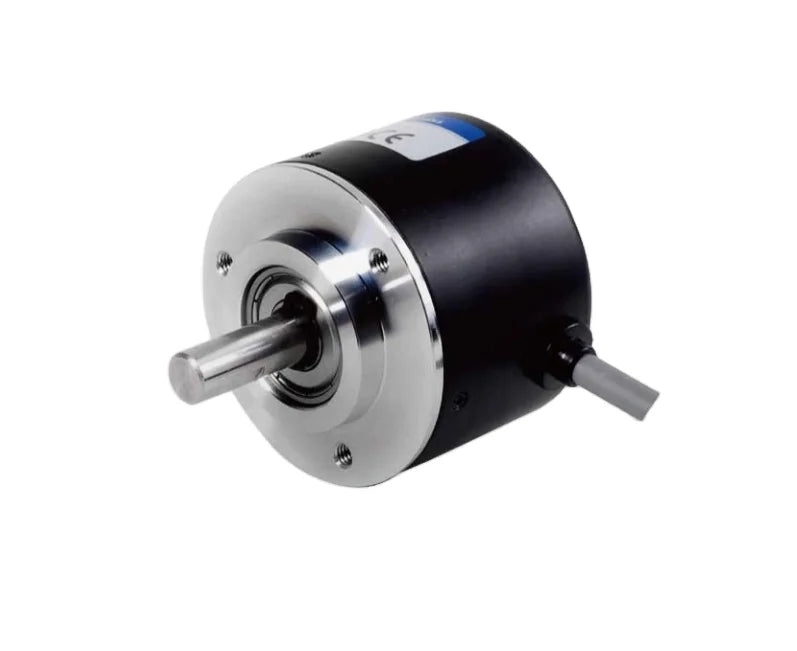

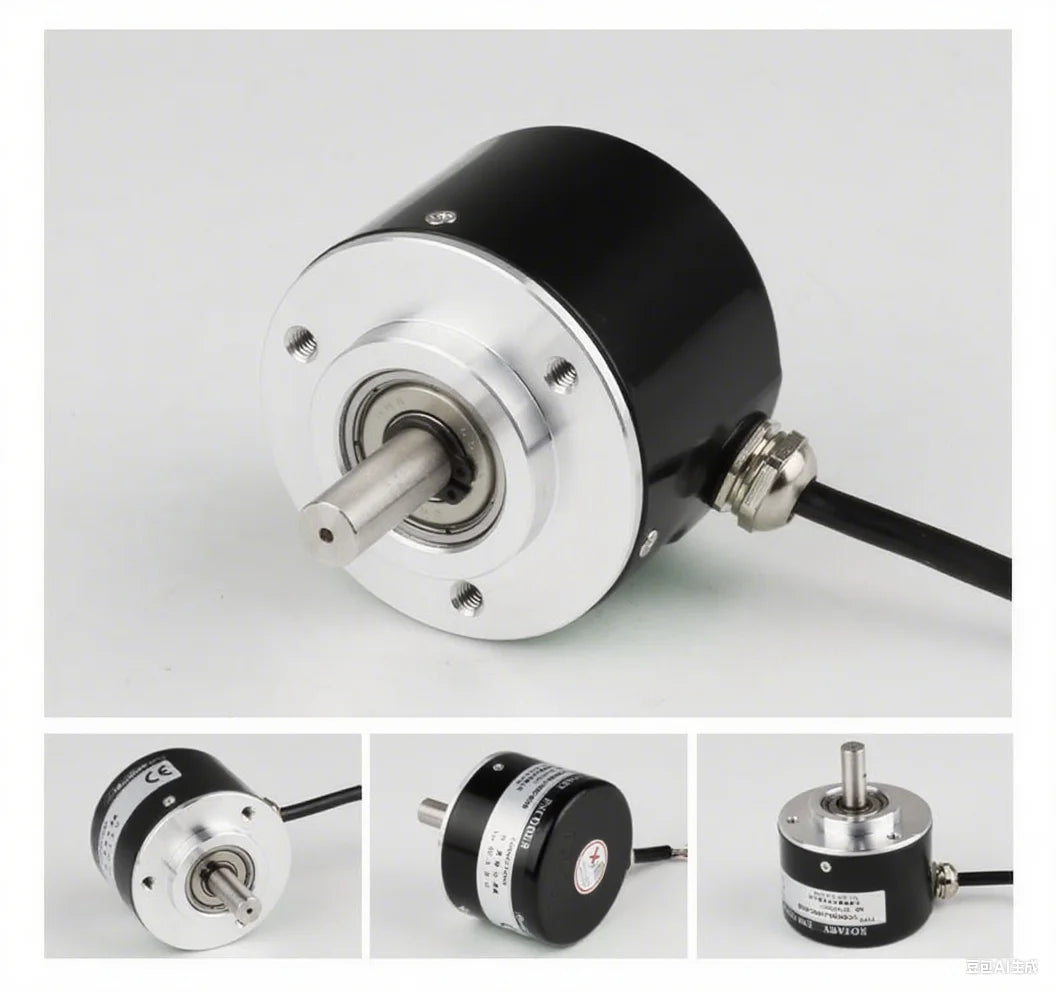

| Description | optical incremental shaft encoder | Model Number | RCC50S8 |
| Type | ROTARY ENCODER | Place of Origin | Jilin, China |
| Brand Name | Roundss | Use | CNC |
| Theory | optical encoder | Voltage - Supply | DC5V; DC8-26V;DC10-30V; DC12V |
| Outer Diameter | 50mm | Shaft Diameter | 8mm(Solid Shaft) |
| Resolution | 30~6000 (Customizable) | Output Signal | A, A&B (90° phase - shifted), Z signals |
| Maximum Speed | 6000r/min | Maximum Radial/Axial Load | 30N/20N |
| Operating Temperature | -20~85℃ | Protection Rating | RCC: IP54 / DCC: IP65 |
| Supply Voltage 1 | Voltage, Complementary, Open-collector | Supply Voltage 2 | Long - line Drive Output; Wide - voltage Long - line Output |
| Outer Diameter | 50 |
