Description
dibo
The delivery cycle is 40 days

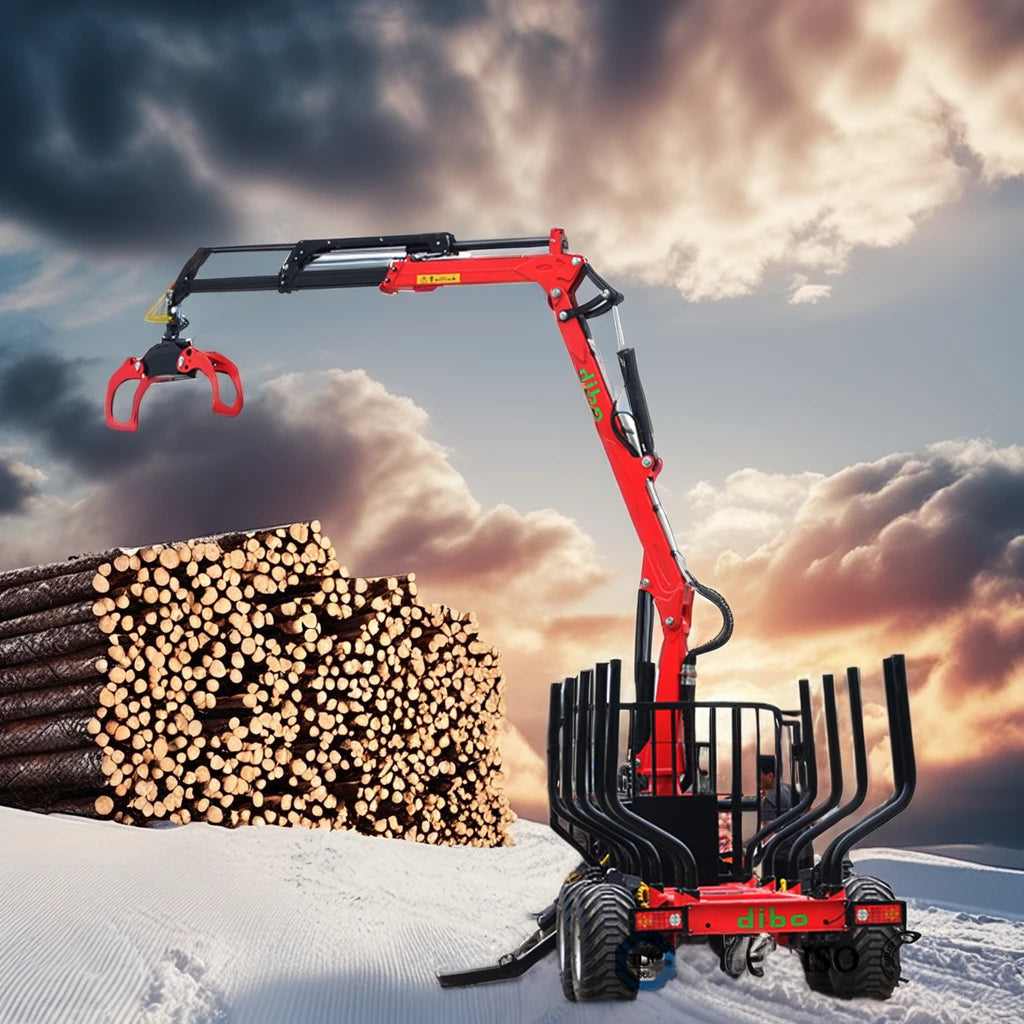

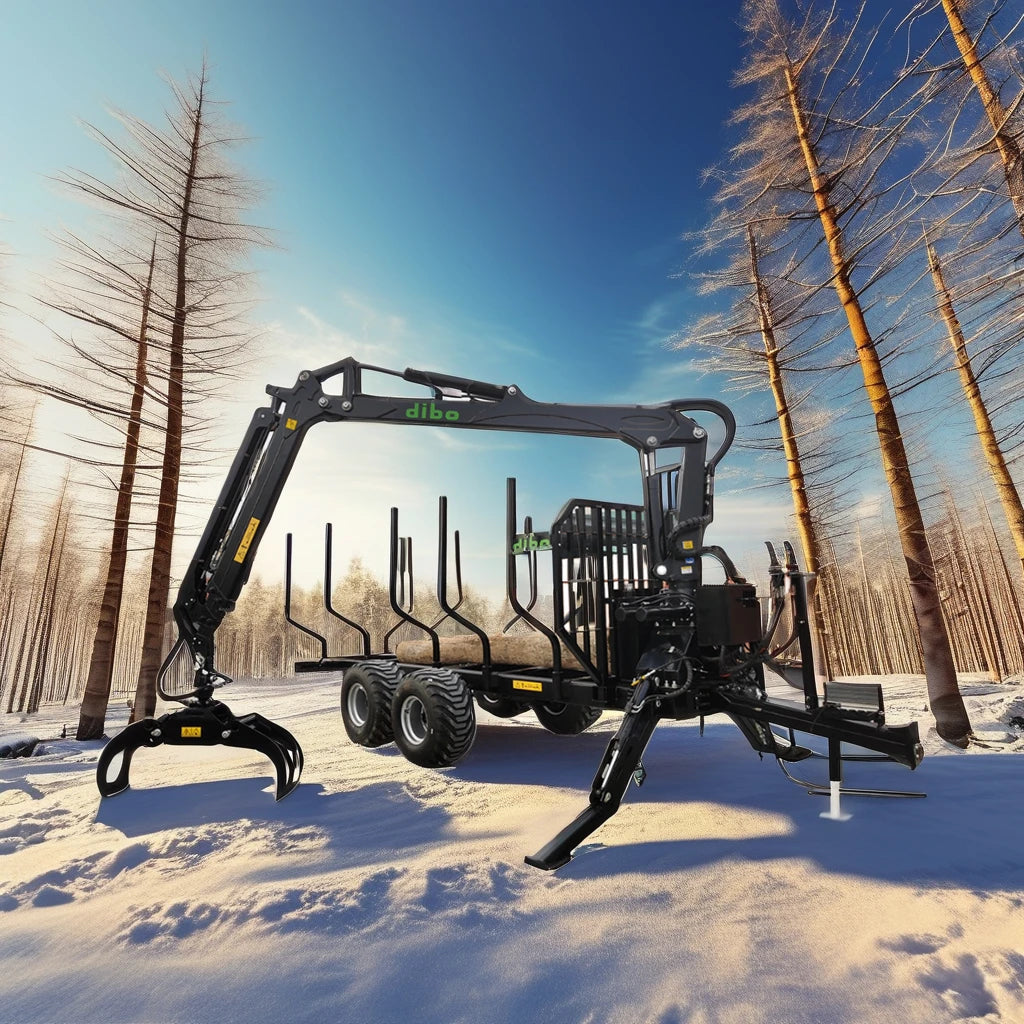

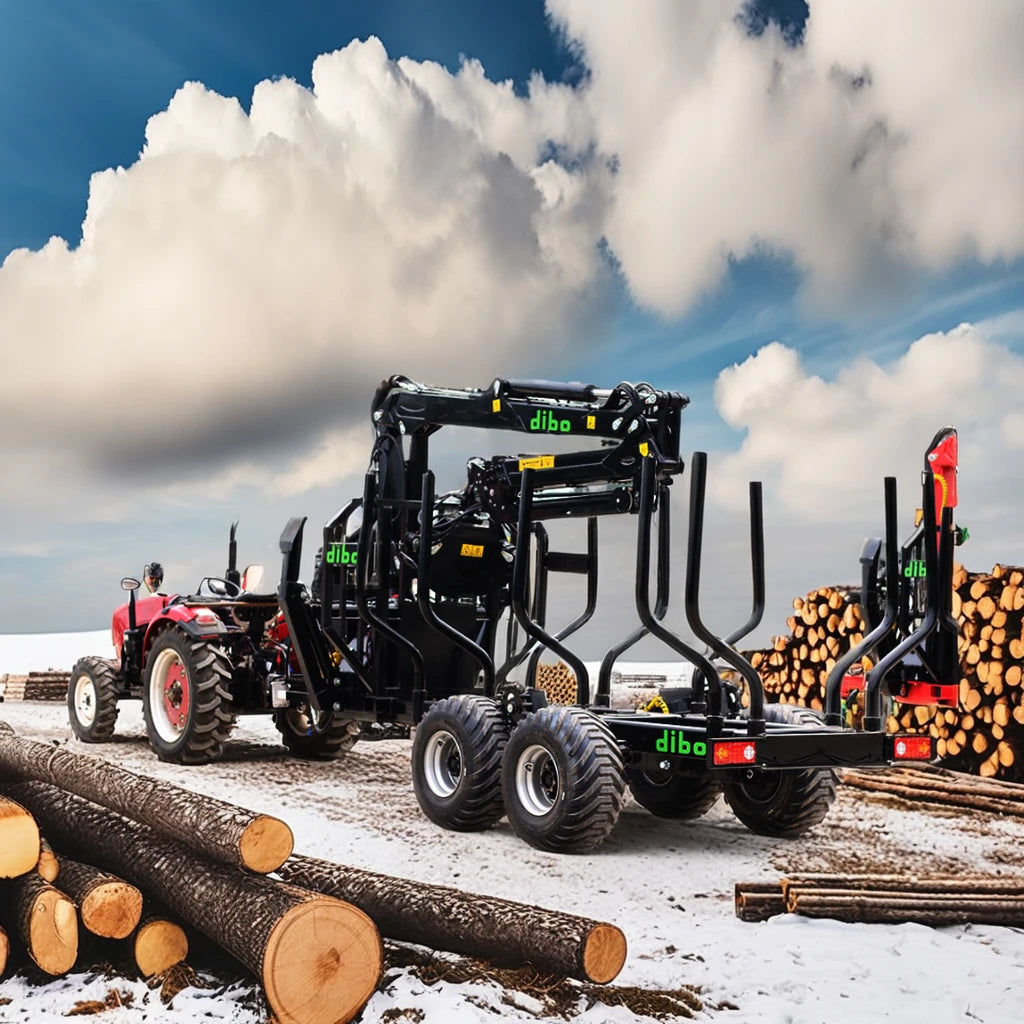

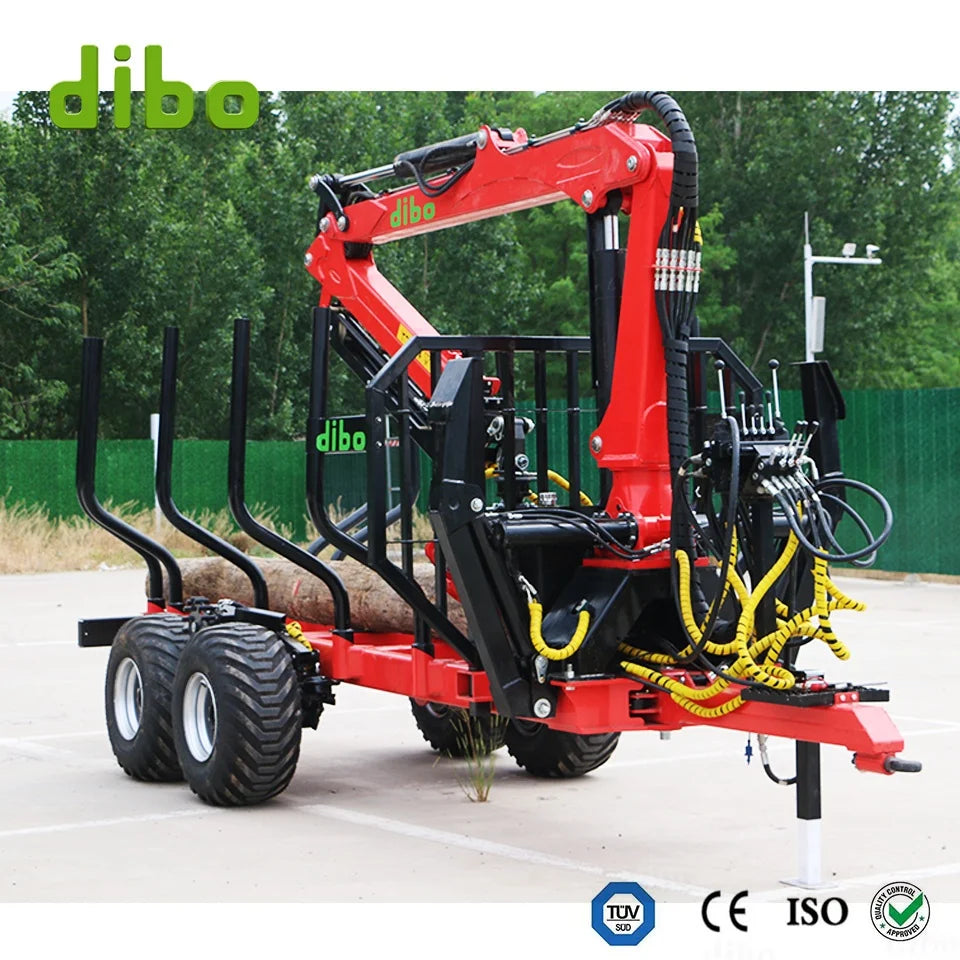

| type | timber trailers grab | power type | Diesel |
| place of origin | Shandong, China | brand name | DIBO |
| weight | 480 | warranty | 1 Year |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | Bearing, motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox | Lifting capacity at 4 m | 500(KG) |
| Lifting capacity at full reach | 480(KG) | Hydraulic oil flow | 15-35(L/min) |
| Total weight | 480(KG) | type outriggers weight | 175( KG) |
| A type outriggers weight | 160( KG) | Rotary motor | GR-10(1T) |
| Number of rotating cylinders | 4 | Rotation angle(°) | 370° |
| Application | Fruit trees, sugar cane, straw, wood, trees, others |
| model number | TC420 TC470 TC550 TC650 TC780 |
