Description
times brilliant
The delivery cycle is 3 days
| Warranty | 3months-1year | Place of Origin | Beijing, China |

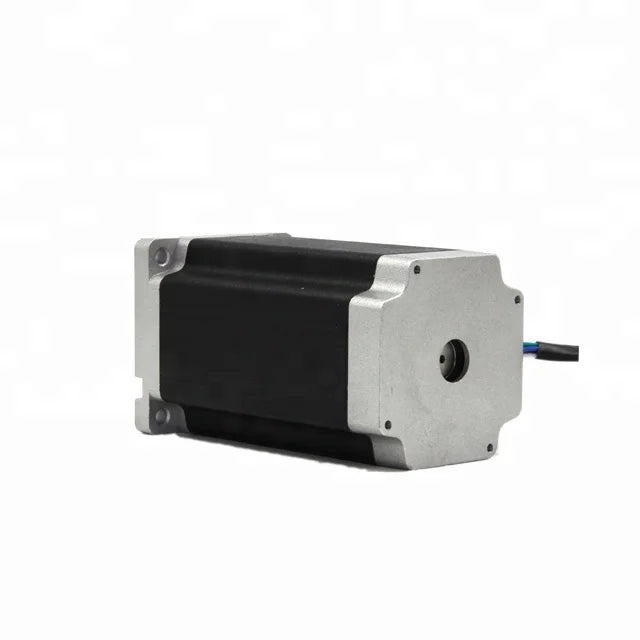

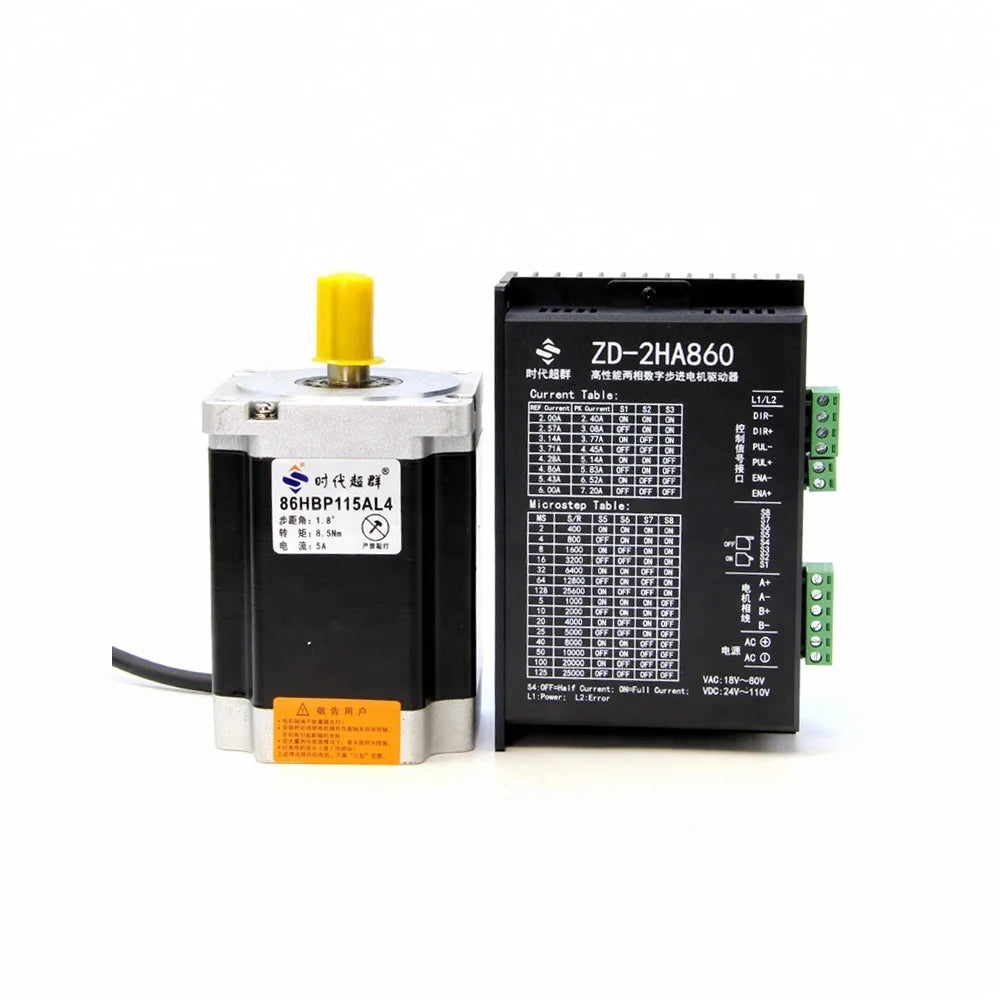

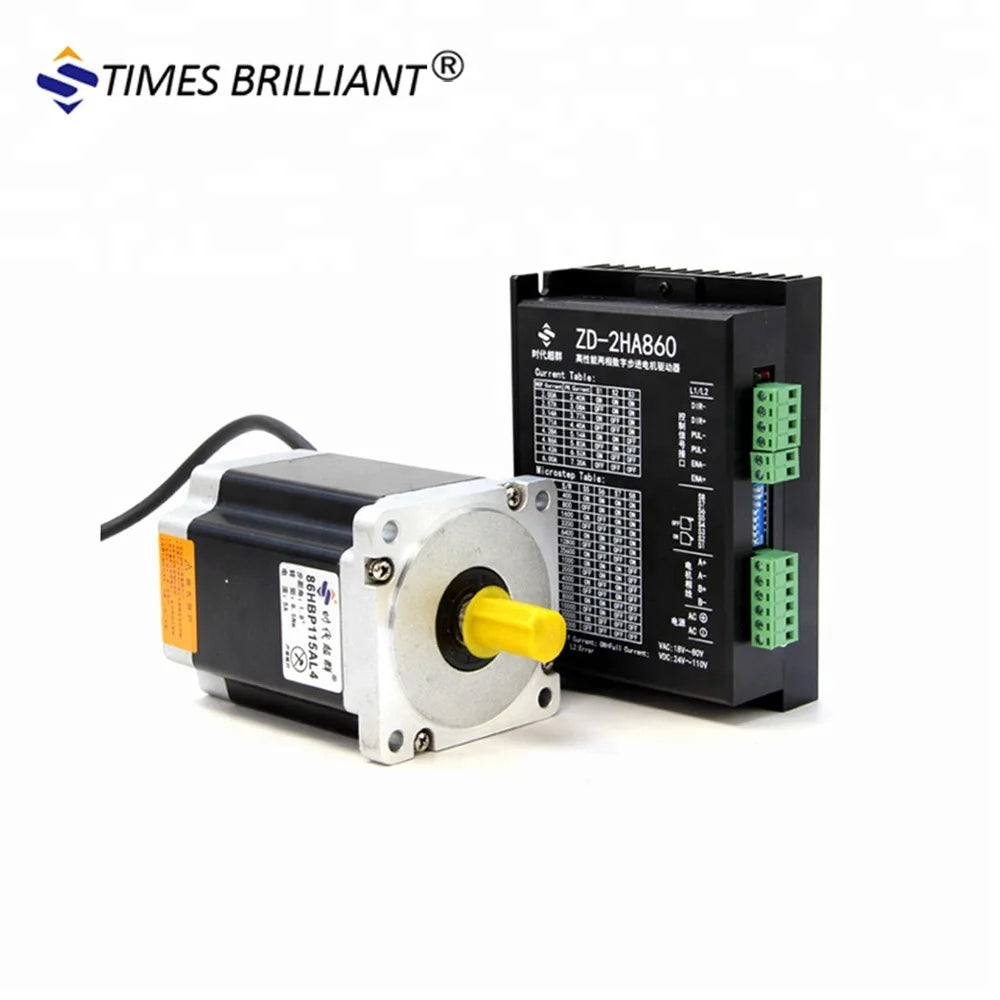

| Brand Name | Times Brilliant | Model Number | 86HBP115AL4+DM860H |
| Phase | 2, 2 | Type | Permanent Magnet |
| Current / Phase | 4.0A | Torque | 8.5NM |
| Shaft Diameter | 14MM | Voltage | DC 48V |
| Nema Frame Size | NEMA 34 | The Temperature Rise | 80K Max |
| Environment Temperature | -40 ℃ + 55 ℃ | Insulation Grade | B Class |
| Insulation Resistance | 100MΩ | Insulation Strength | 1000VAC 50Hz 1mA/Min |
| Power Supply Voltage | 24V-80V | Resistance | 0.6Ω |

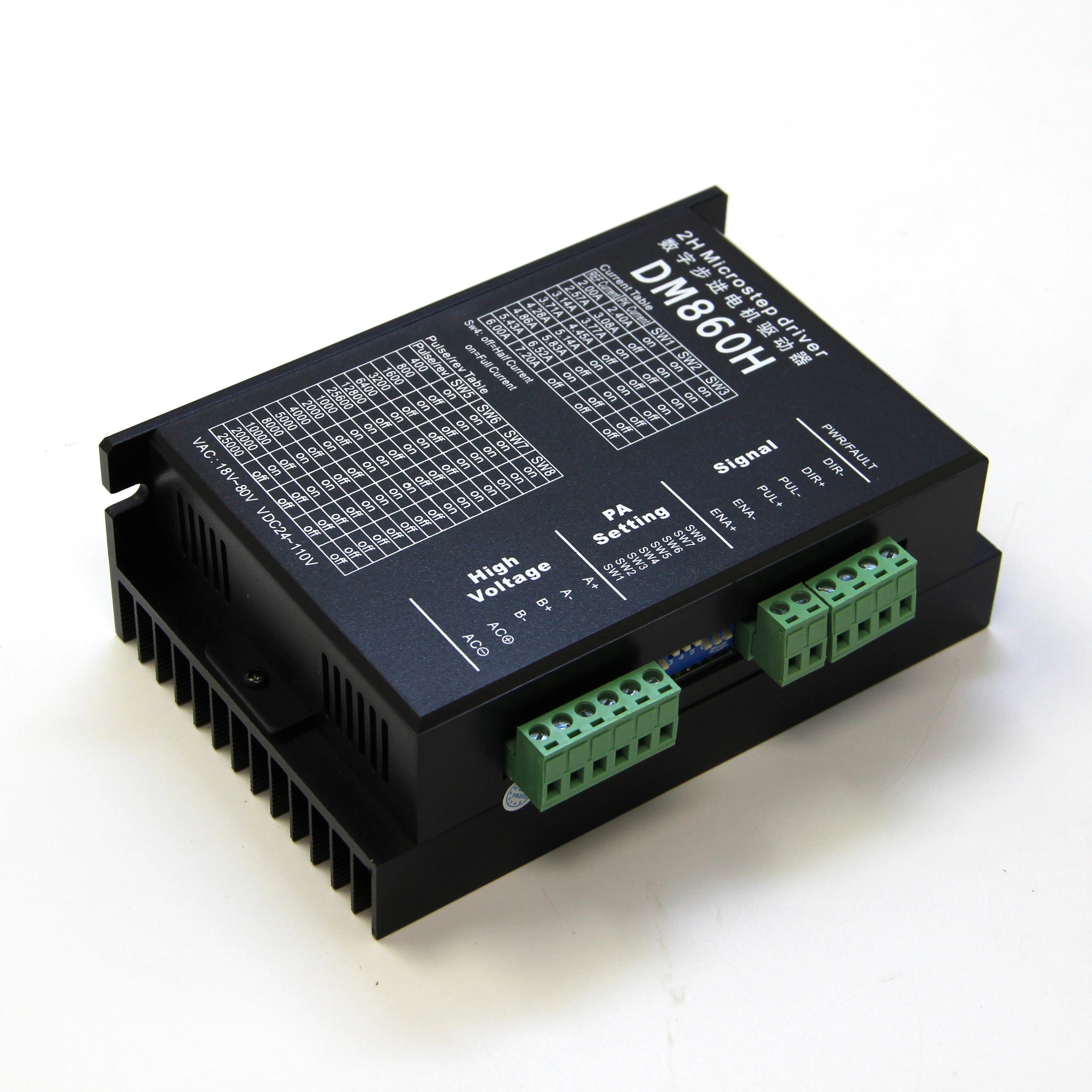

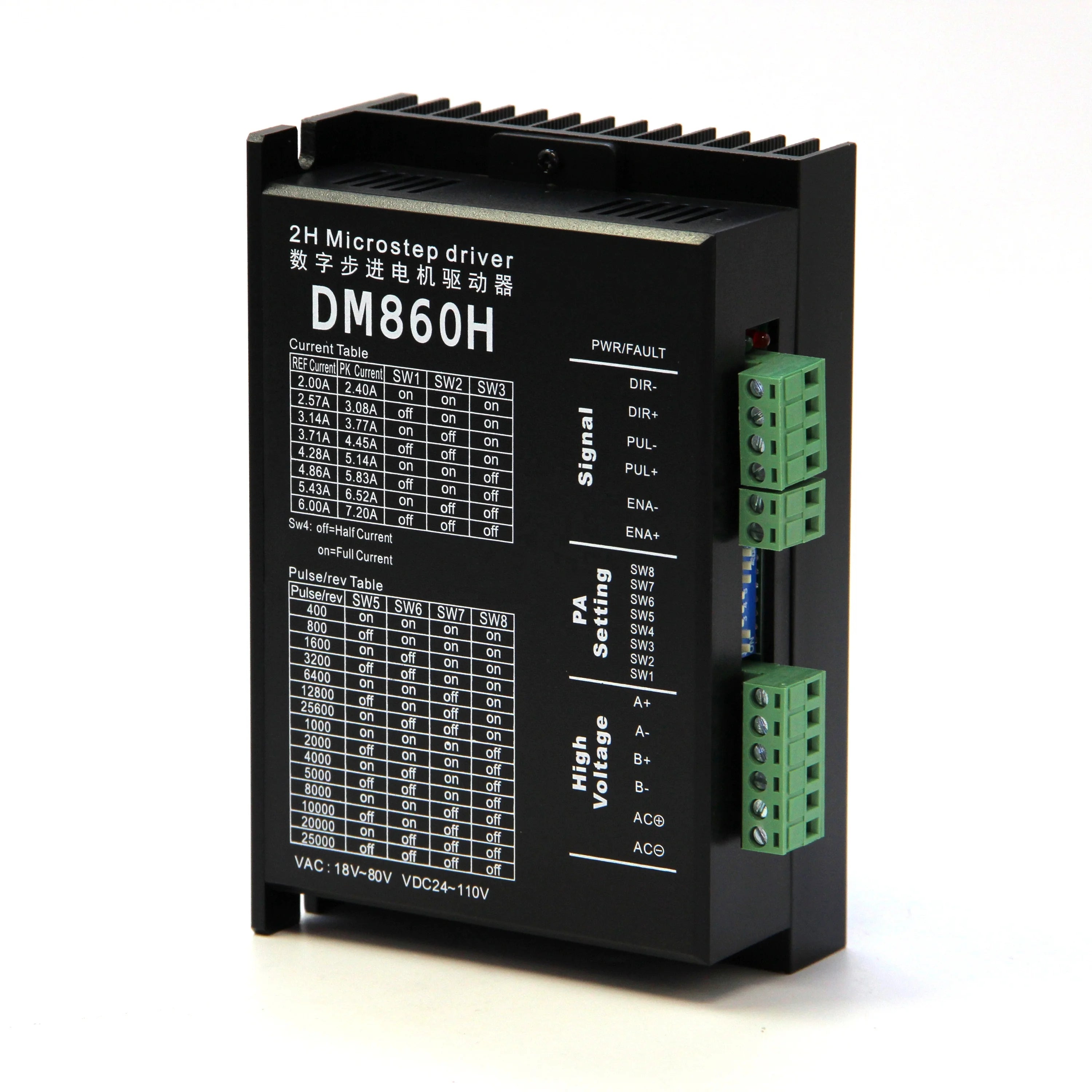

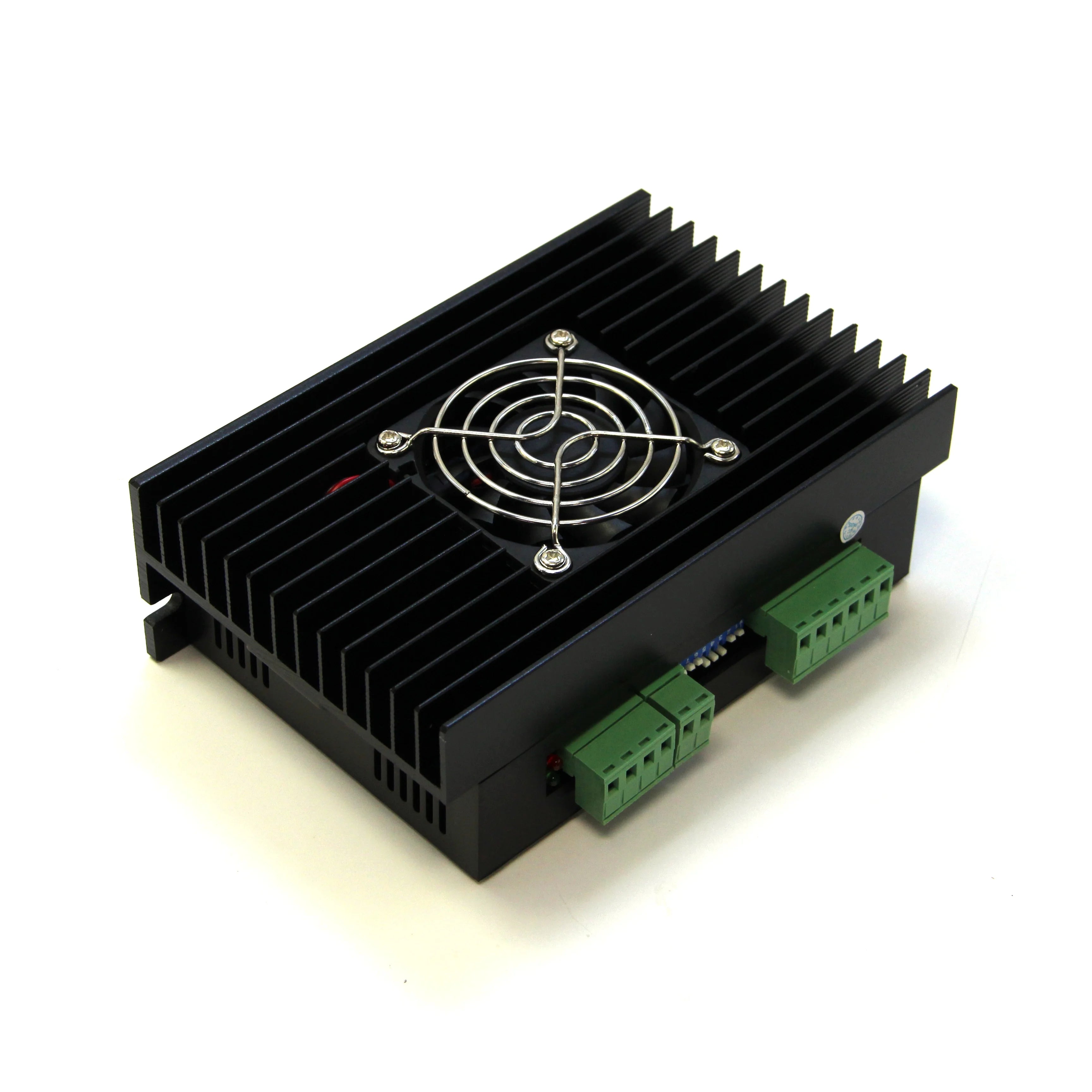

| Inductance | 11mH | Adapter Driver | DM860H |
| Step Angle(degrees) | 1.8 Degree | Holding Torque | 8.5Nm |
