Description
roundss
The delivery cycle is 14 days

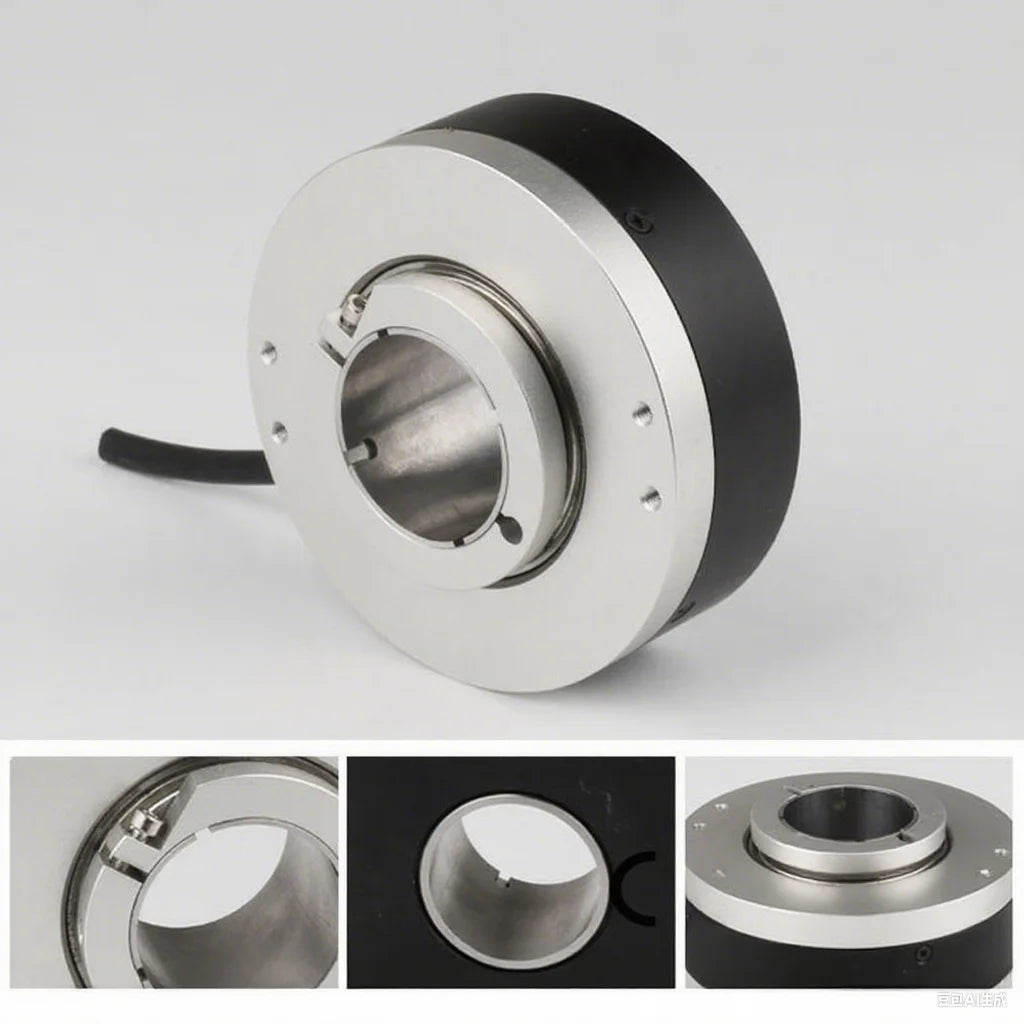

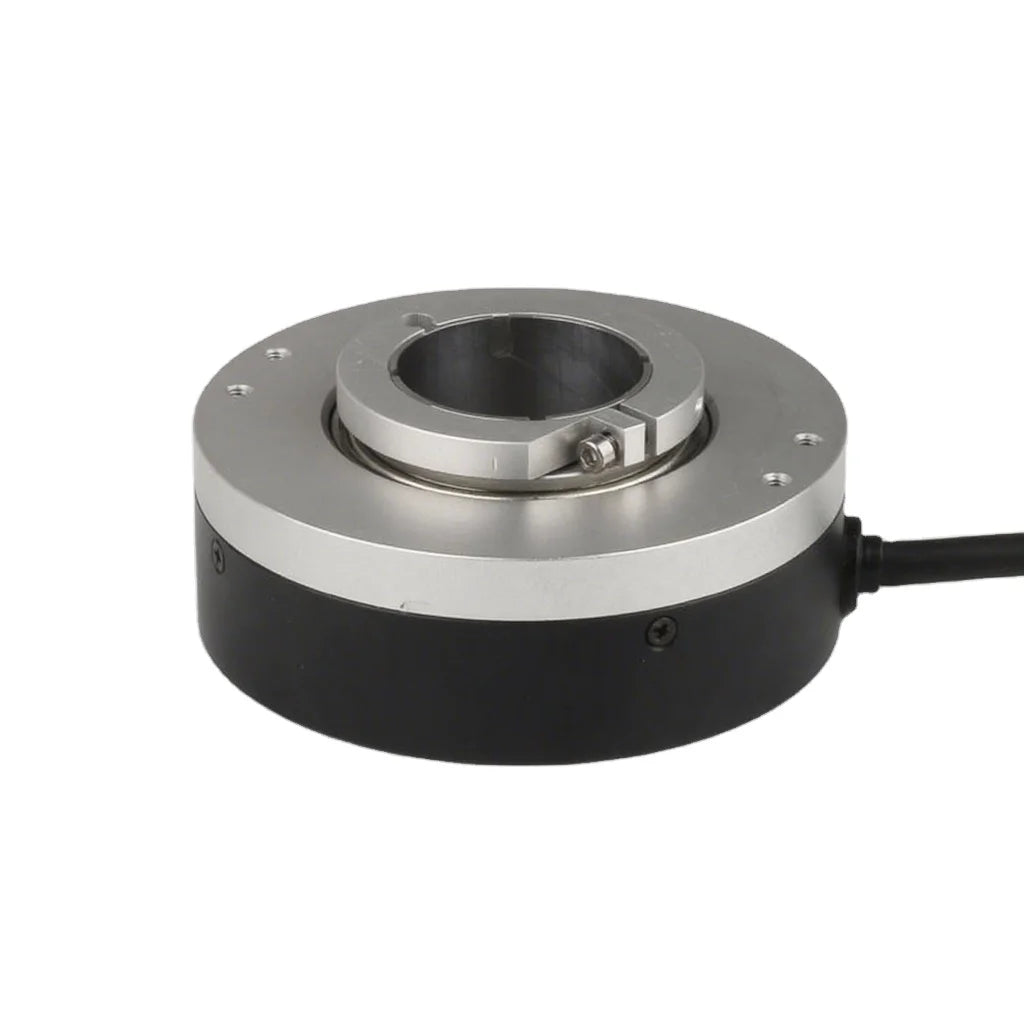

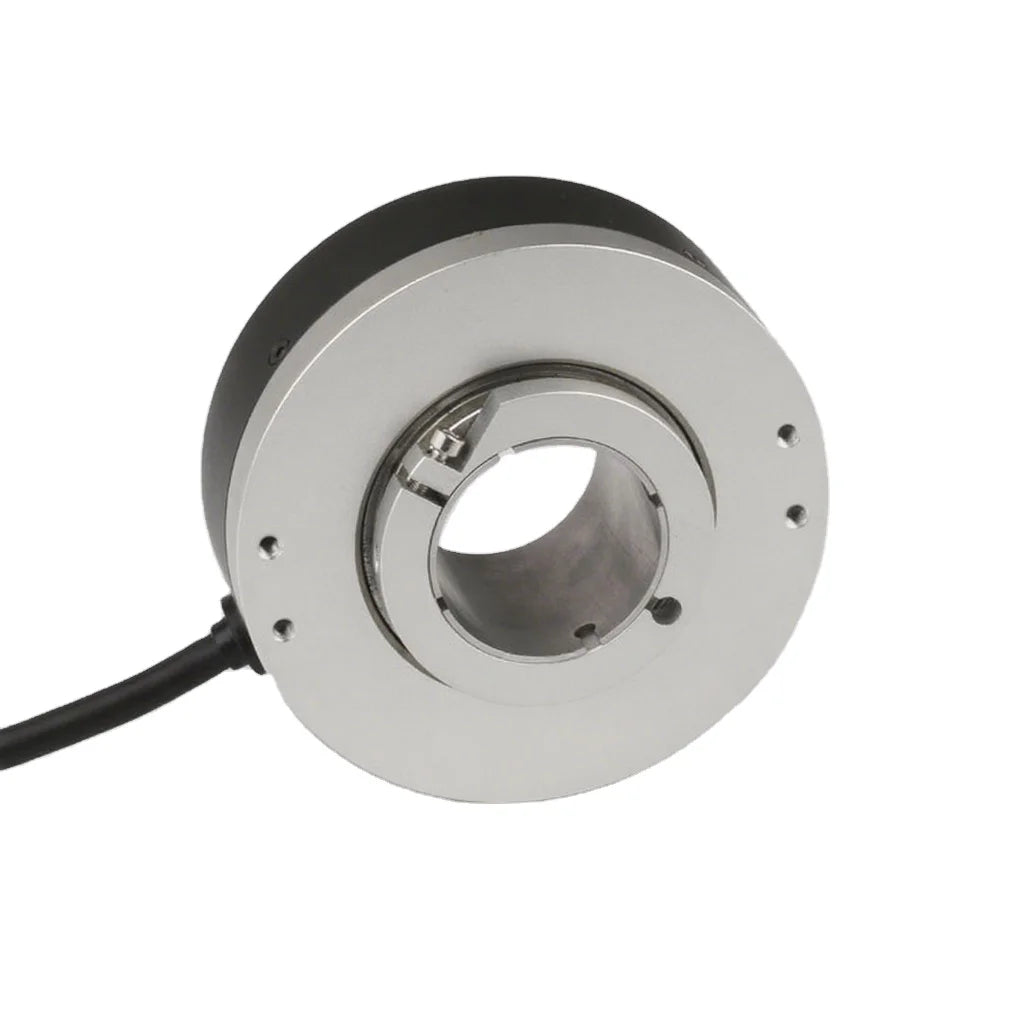

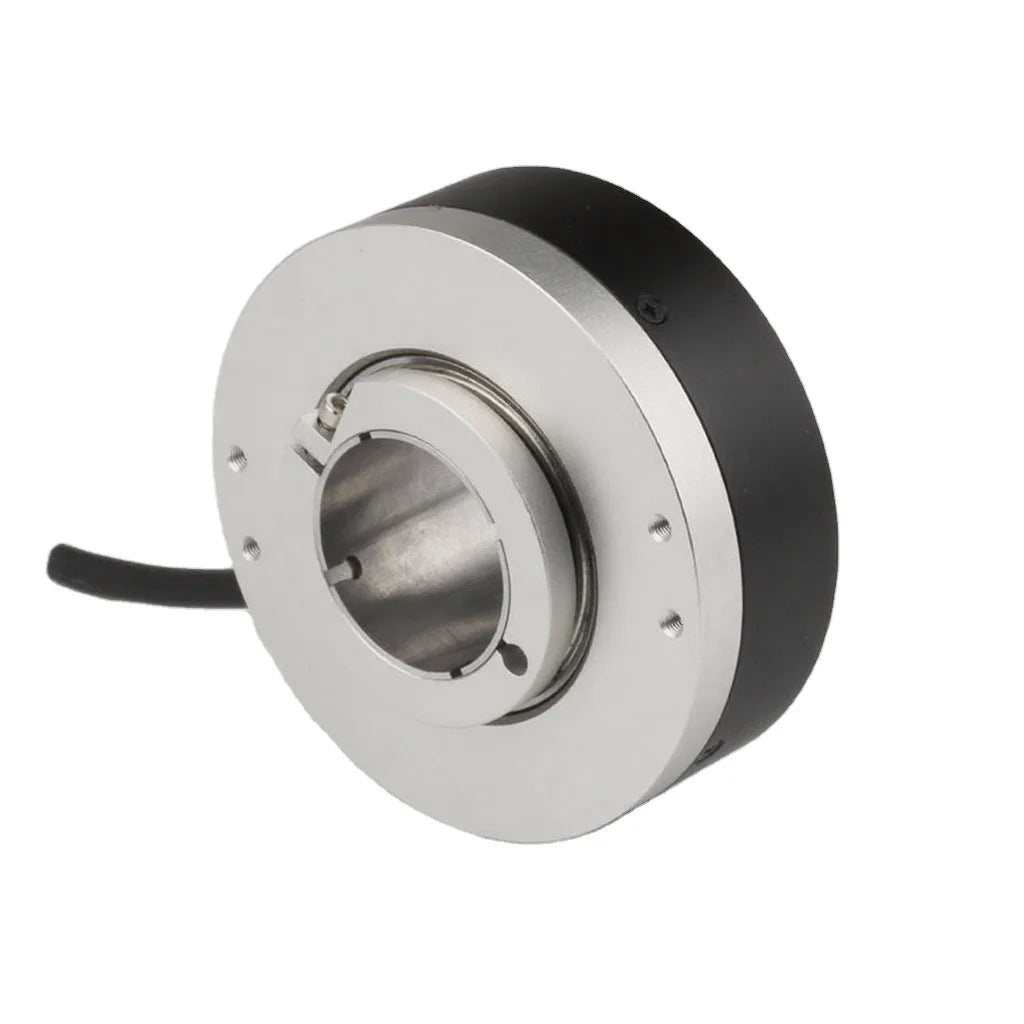

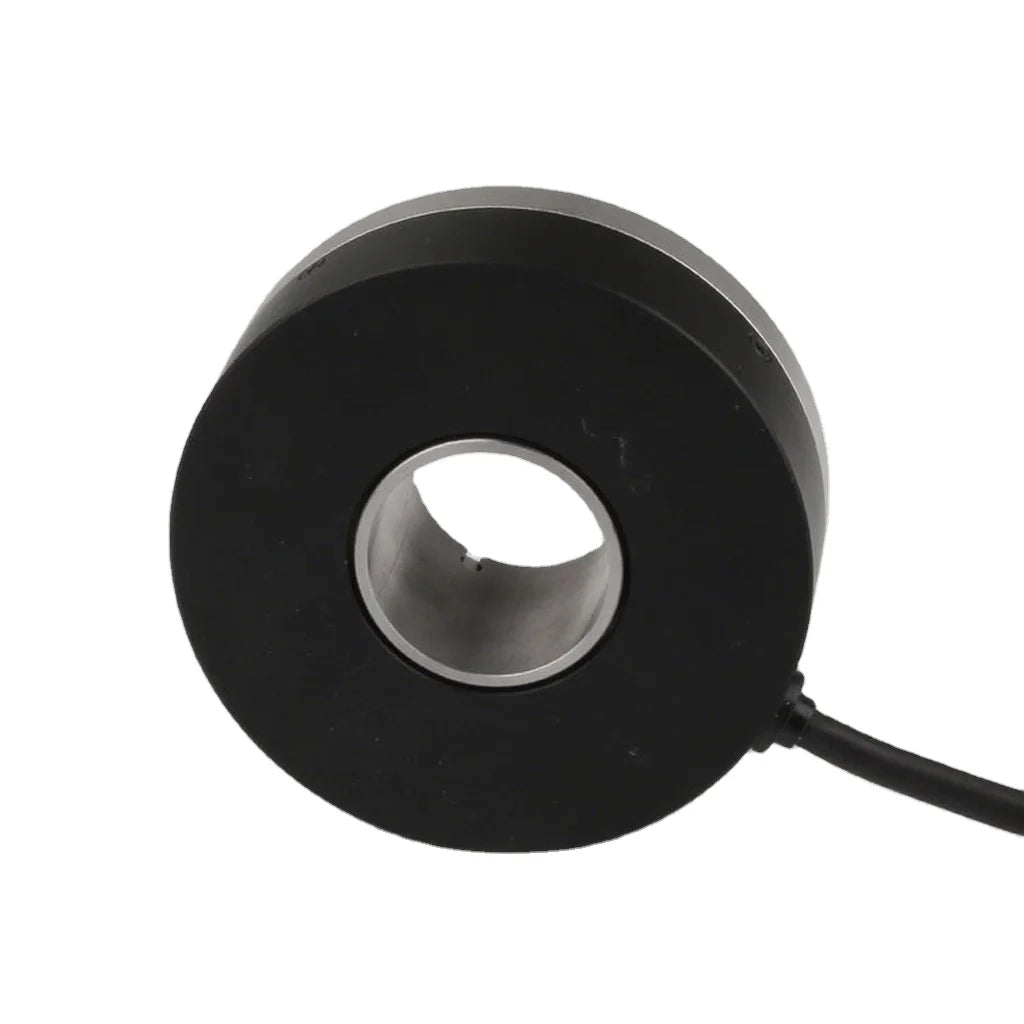

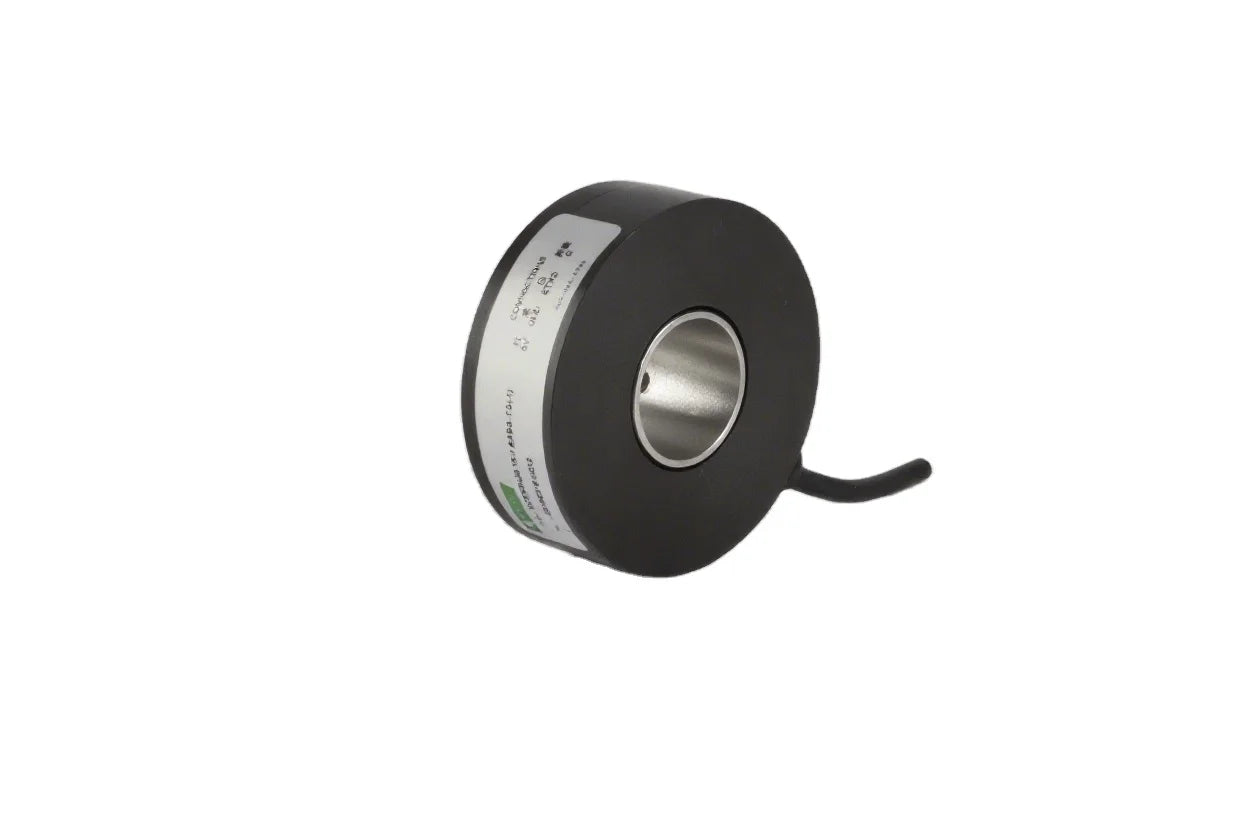

| Series | Absolute Encoder( (Hollow Shaft) | Features | High-Precision / Customizable |
| Mounting Type | Shaft-mounted | Description | Output absolute position |
| Model Number | RAA80B25 | Type | ABSOLUTE ENCODER |
| Place of Origin | Jilin, China | Brand Name | Roundss |
| Use | In automatic measurement and control systems, e.g. | Output | Asynchronous Serial / Synchronous Serial |
| Voltage - Supply | DC5V±5% / DC10-30V | Communication interface | RS422 / RS485 / RS232 / SSI / CANopen / BiSS - C |
| Outer Diameter | 80mm | Shaft Diameter | 25mm (Hollow Shaft) |
| Resolution | 12-20 bit Single - turn; 2-16 bit Multi - turn | Output Code System | Binary Code / Gray Code |
| Maximum Mechanical Rotation Speed | 3000 r/min | Operating Temperature | -40~65℃ |
| Protection Rating | IP64 |
| Outer Diameter | 80mm |
