Description
TT MOTOR
The delivery cycle is 15 days
| Warranty | 3months-1year | Place of Origin | Guangdong, China |

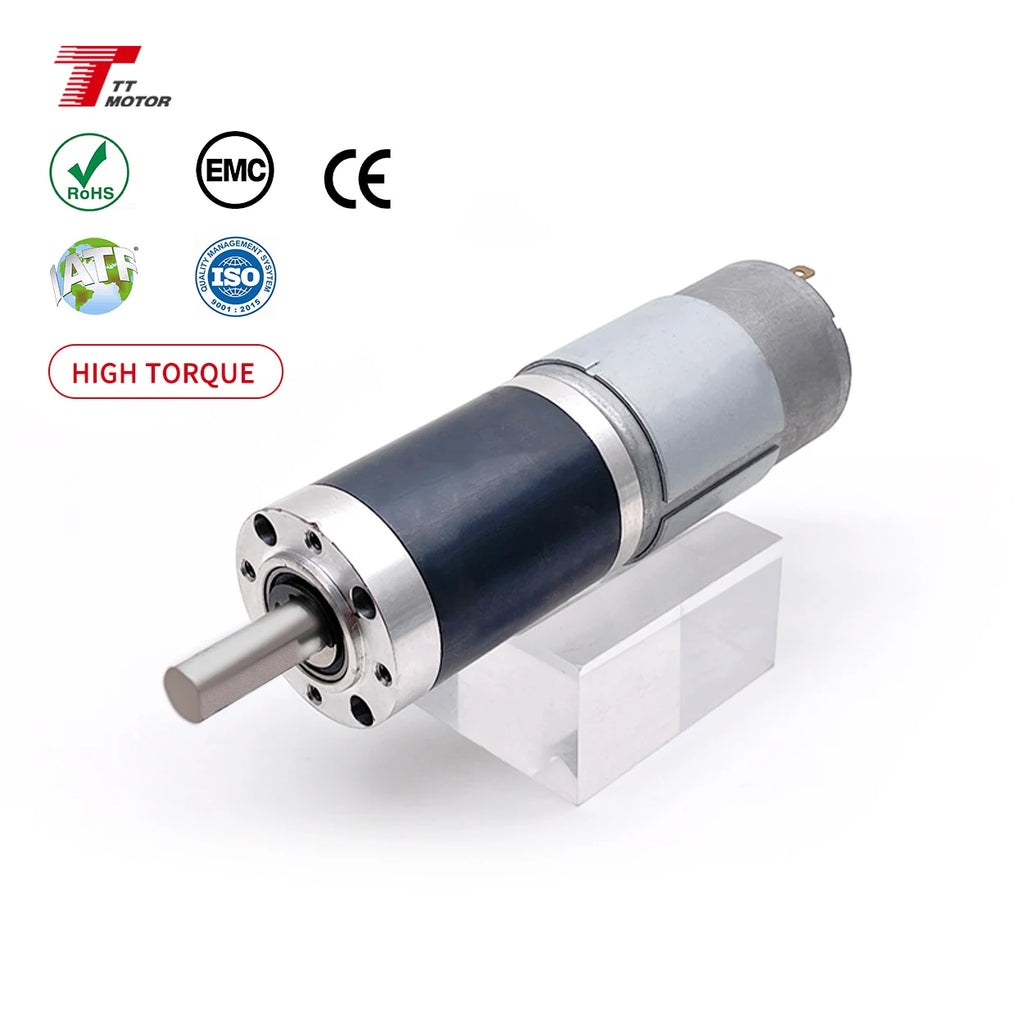

| Brand Name | TT MOTOR | Model Number | GMP42-775PM |
| Use | BOAT, Car, Electric Bicycle, Home Appliance, Cosmetic instrument, SMART HOME, Industrial equipment | Type | GEAR MOTOR |
| Torque | 60kg.cm | Construction | Permanent Magnet |
| Commutation | Brush | Protect Feature | Totally Enclosed |
| Speed(RPM) | 5-2000rpm | Continuous Current(A) | 1.8-8.2A |
| Efficiency | 65% | Frame | 42mm |
| Rated voltage | Customizable | Rated Power | Customizable |
| Motor Mounting Type | Panel Mount | Speed Rpm | Customizable |
| Size | 42*(L+67) mm | Product Name | dc gear motor |
| Typical Applications | Medical Device | Motor type | PMDC Brushed Motor |
| Shaft diameter | 10MM-D | Gear Type | Plantary Gearbox |
| Gear Material | POM + Metal Gears | Motor Diameter | 42mm |
| Weight | 750g | Noise | 30cm.40-50db |
