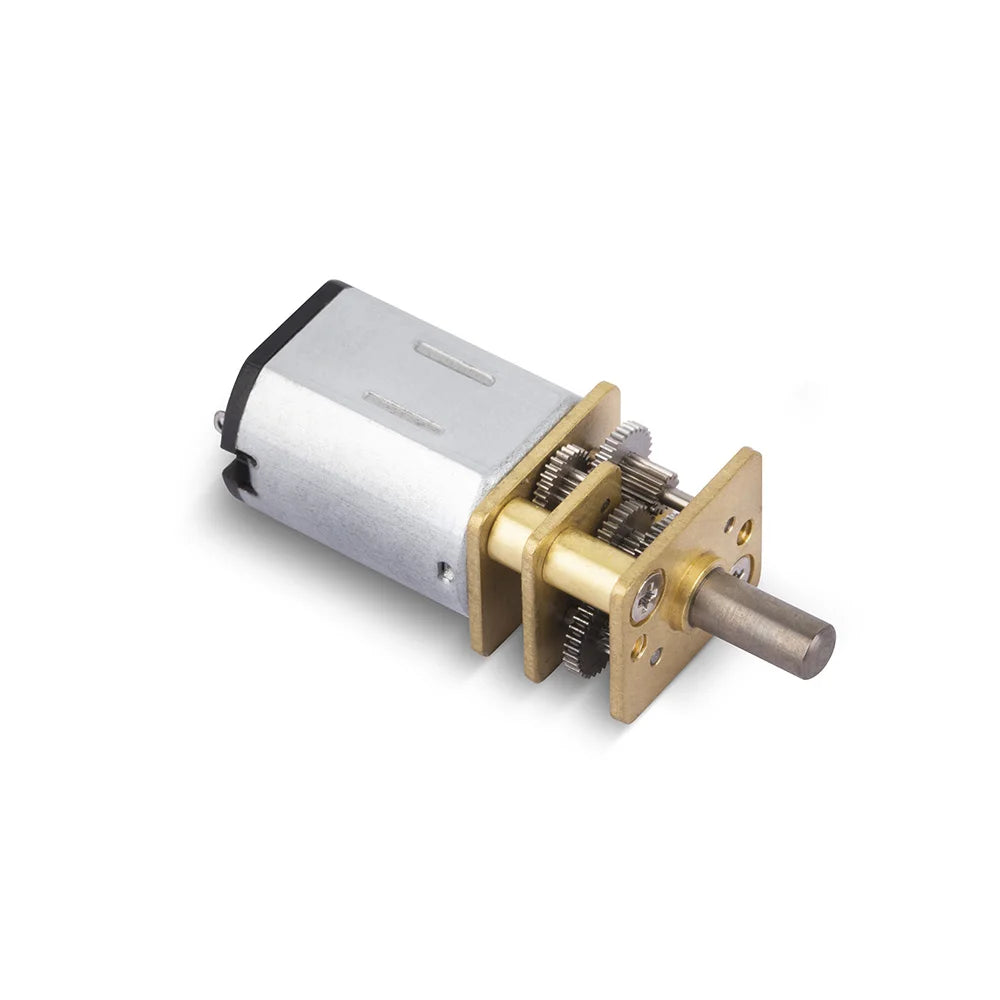

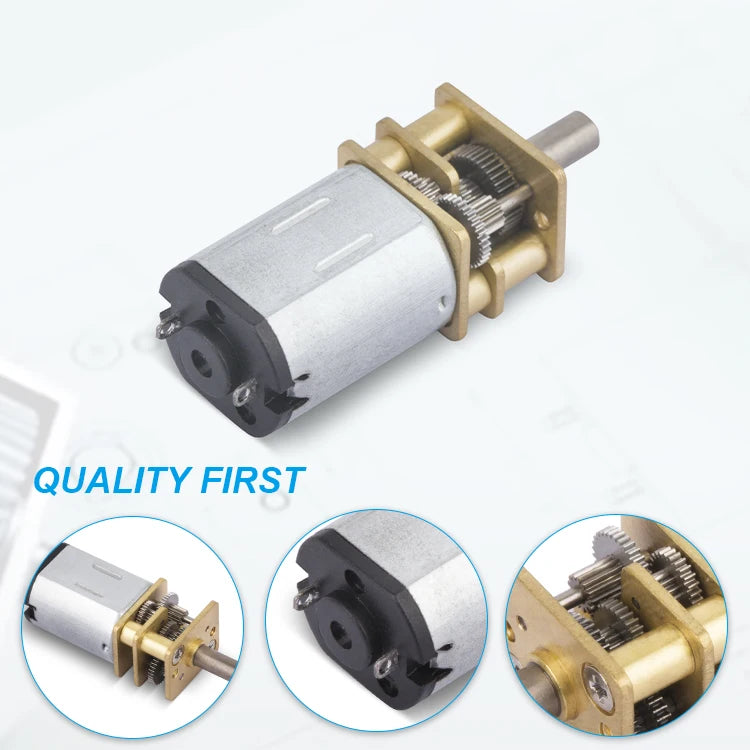

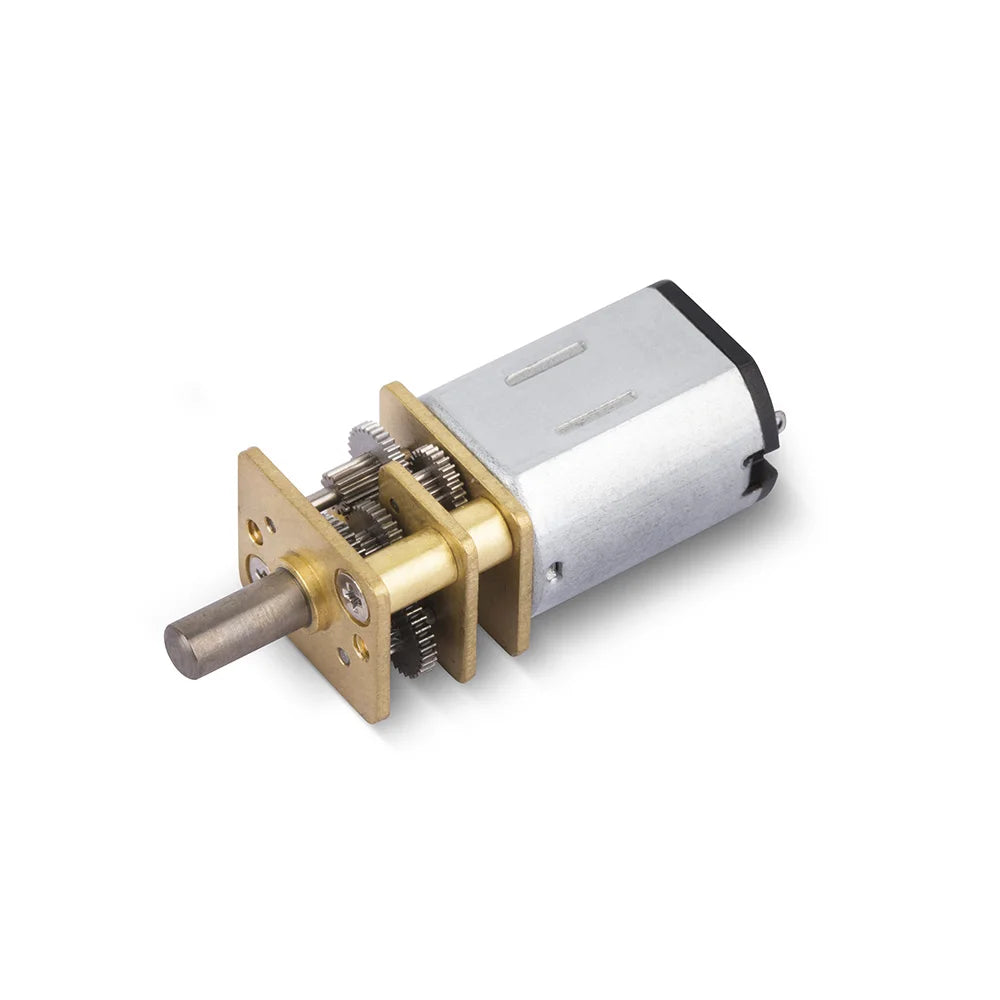

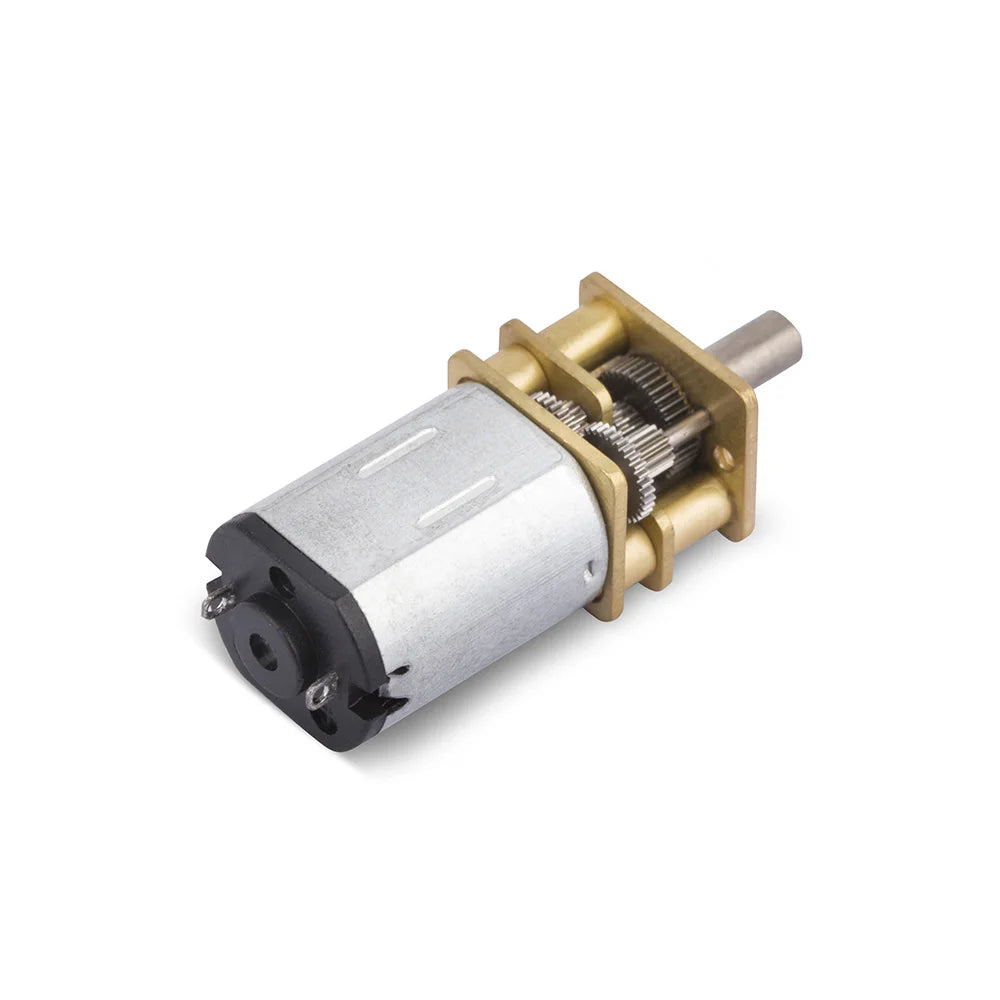

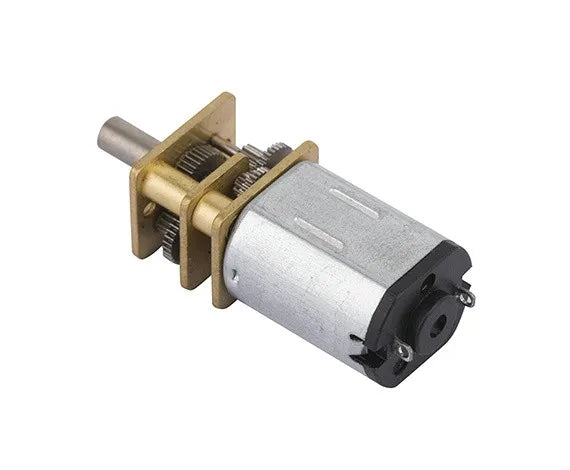

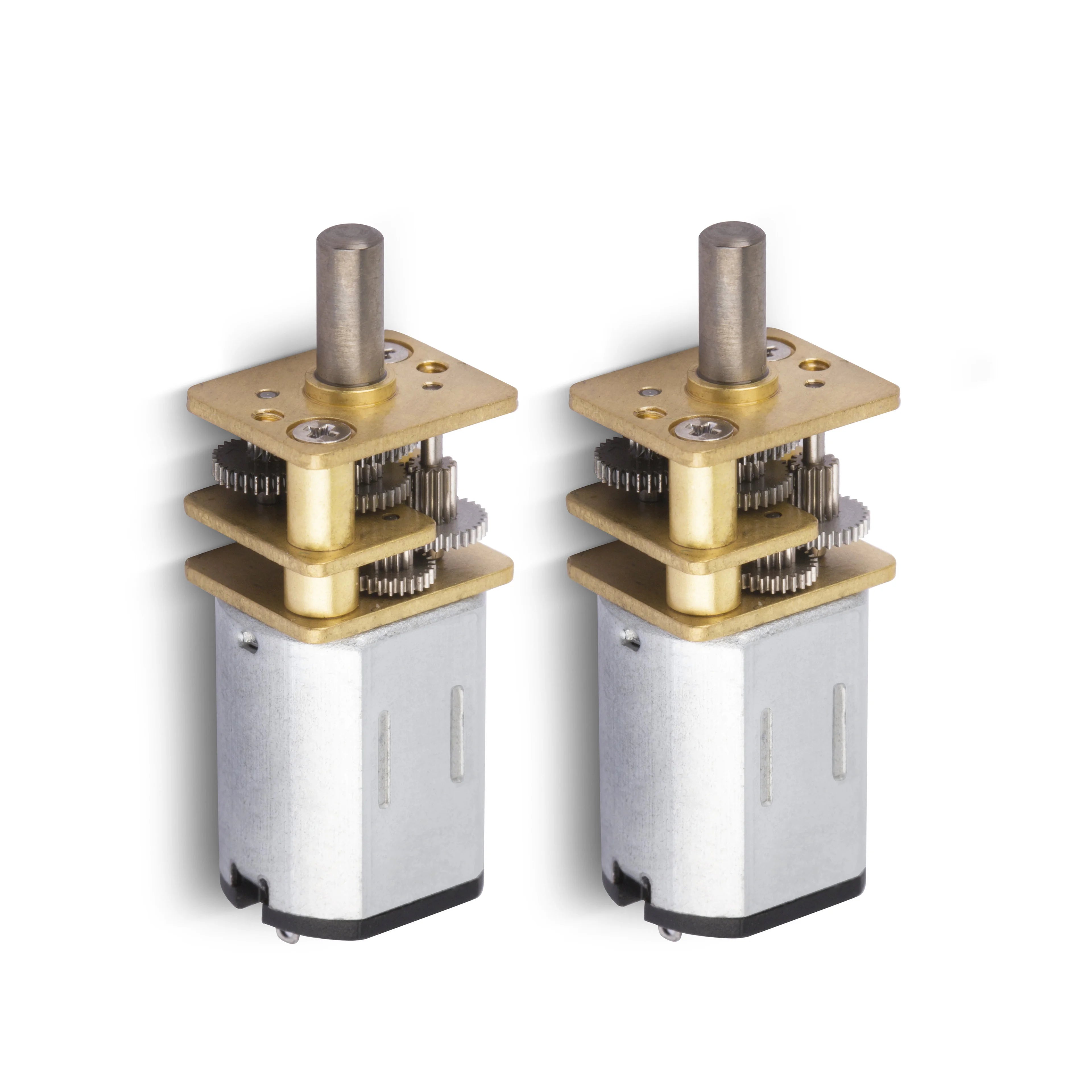

Penerangan
Kinmore
The delivery cycle is 15 days
| Warranty | 3months-1year | Place of Origin | Guangdong, China |
| Brand Name | Kinmore | Model Number | KM-12FN20-10-063550 |
| Use | Car, Electric Bicycle, FAN, Home Appliance, SMART HOME, door lock actuator motor | Type | Micro Motor |
| Torque | 10g.cm | Construction | Permanent Magnet |
| Commutation | Brush | Protect Feature | Drip-proof |
| Speed(RPM) | 3360rpm rated | Continuous Current(A) | 0.26A |
| Efficiency | IE 1 | Frame | 12*15.1mm |
| Rated voltage | DC 6V | Rated Power | 0.3W |
| Motor Mounting Type | Panel Mount | Speed Rpm | 3360rpm rated |
| Typical Application : | smart mini gear motor | End Cap: | plastic |
| Brush : | Carbon Brush | Struture: | Brush arm structure |
| Outout power: | TBD | Lifetime: | 350 Hours MAX |
| Components: | Diversified | Production: | Automatic Assembly |
| Certification | RoHS |
