Dong Hui DC Motor
The delivery cycle is 15 days
| Warranty | Other | Place of Origin | Guangdong, China |

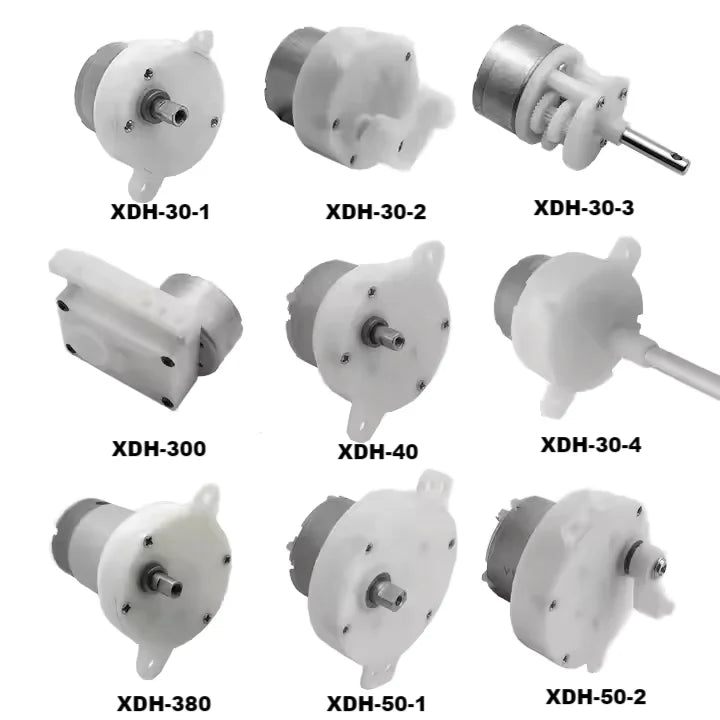

| Brand Name | Dong Hui DC Motor | Model Number | XDH-30, XDH-40, XDH-50, XDH-300, XDH-310, XDH-385 |
| Use | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, LOCK | Type | GEAR MOTOR |
| Torque | 2kg.cm | Construction | Permanent Magnet |
| Commutation | Brush | Protect Feature | Totally Enclosed |
| Speed(RPM) | 60RPM | Continuous Current(A) | 65mA(Max) |
| Efficiency | IE 1 | Frame | 32.5*35mm |
| Rated voltage | 3V~24V | Rated Power | 3W |
| Motor Mounting Type | Panel Mount | Speed Rpm | Custom |

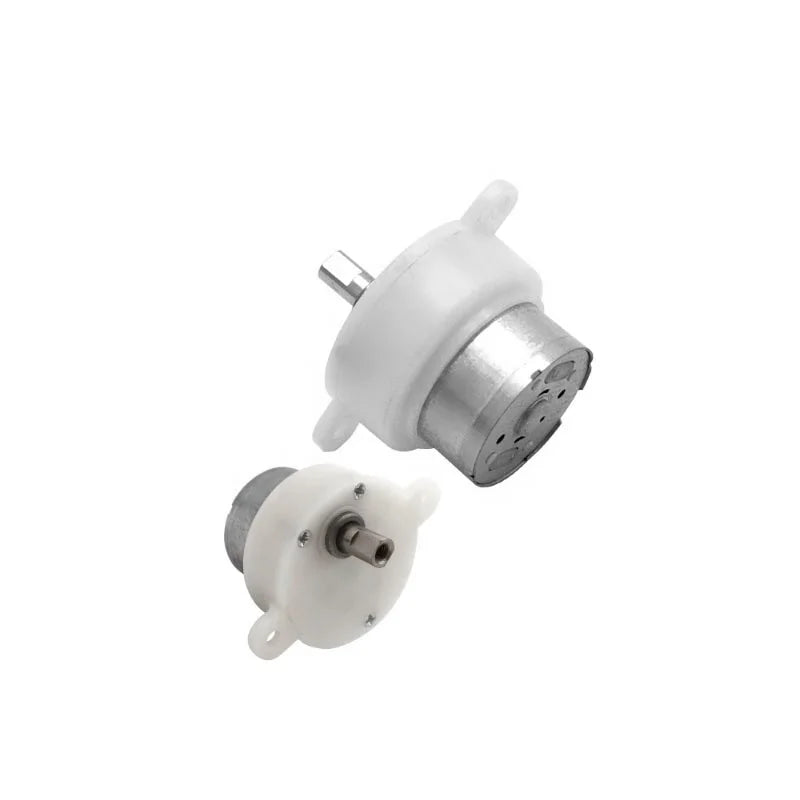

| Product Description | Tiny dc gear motor | Voltage(V) | 3v 6v 9v 12v |
| Gear Ratio | 108:1 or other ratios | Load Speed | 60rpm(after assembled with gear box) |
| Load Torque | 800g.cm | Stall Torque | 2kg.cm |

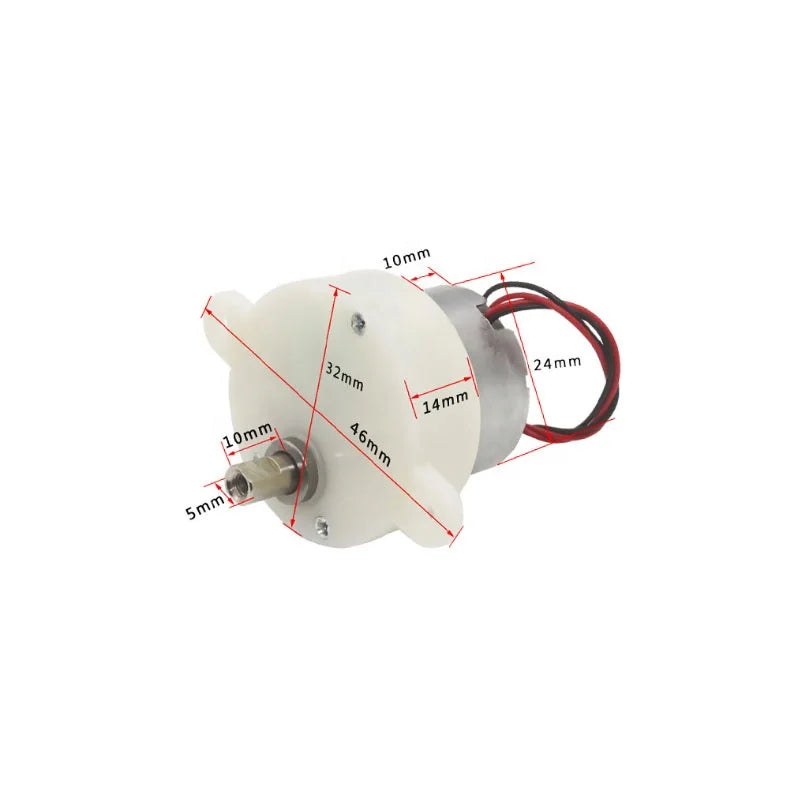

| Stall Current | 230mA | Size | 32.5mm*35mm |
| Keyword | metal gear motor | OEM/ODM | Available |
